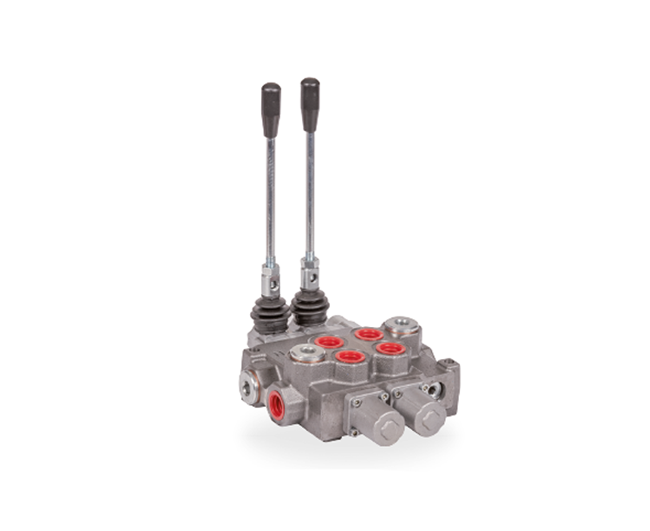

HPS-M70
- Category:
Nominal Flow Rating / Displacement 70 l/min 18 U.S.G.P.M Maximum Working Pressure (Parallel Circuit) 315 Bar 4600 ... More
Follow:
Explanation
| Nominal Flow Rating / Displacement | 70 l/min | 18 U.S.G.P.M |
| Maximum Working Pressure (Parallel Circuit) | 315 Bar | 4600 PSI |
| (Series Circuit) | 250 Bar | 3600 PSI |
| Max. Back Pressure | 25 Bar | 360 PSI |
| Oil Temperature with NBR Seals | -20 to 80 C˚ | -4 to 176 F ˚ |
| with FPM (Viton) Seals | -20 to 100 C˚ | -4 to 212 F ˚ |
| Number Of Spools | 1 to 6 |
