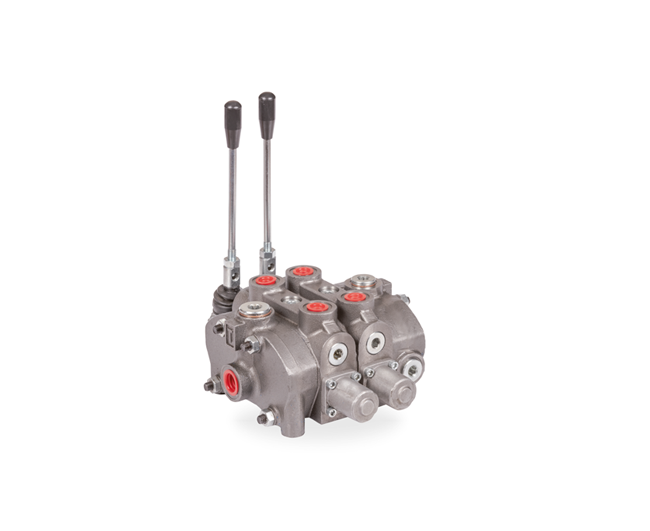

HPS-PD120
- Category:
Nominal Flow Rating / Displacement 120 l/min 31 U.S.G.P.M Maximum Working Pressure (Series Circuit) 210 Bar 3050 PSI Maximum Working Pressure (Parallel Circuit) 315 Bar 4600 ... More
Follow:
Explanation
| Nominal Flow Rating / Displacement | 120 l/min | 31 U.S.G.P.M |
| Maximum Working Pressure (Series Circuit) | 210 Bar | 3050 PSI |
| Maximum Working Pressure (Parallel Circuit) | 315 Bar | 4600 PSI |
| Max. Back Pressure | 25 Bar | 360 PSI |
| Oil Temperature with NBR Seals | -20 to 80 C˚ | -4 to 176 F ˚ |
| with FPM (Viton) Seals | -20 to 100 C˚ | -4 to 212 F ˚ |
| Number Of Spools | 1 to 12 | |
| Tie rod tightening torgue | 40 Nm | 30 Ibft |
